FKA series angular contact thin bearings
FKA series angular contact thin bearings
Product description
Parameter
Related products


Product

Feature

Angular Contact Thin Section, A-Type unsealed thin section ball bearing is made from 52100 steel and utilizes a snap-over cage design made of brass or composite material. This bearing is designed for applications with primarily radial loads, and is manufactured to ABEC 1F precision tolerances.

Series

Introduction

Thin-section angular contact bearings are designed for supporting axial load .They can also used to support radial or combining radial traction .But this type can't solely used to sustain moment load or reverse radical forces. They always appeared in pairs.

Series

Model No.

(Click the link below to view detailed parameters of the model)

FKA020AR0, FKA025AR0, FKA030AR0, FKA035AR0, FKA040AR0, FKA042AR0,

FKA045AR0,FKA047AR0, FKA055AR0, FKA060AR0, FKA065AR0, FKA070AR0,

FKA075AR0, FKA080AR0,FKA090AR0, FKA100AR0, FKA110AR0, FKA120AR0

Application

• Aircraft, aerospace and astronomy instrumentation
• Food processing equipment
• Index and rotary tables
• Packaging equipment
• Machine tools
• Medical devices
• Optical scanning equipment
• Tire making equipment
• Robotics
• Textile machinery
• Tube and pipe cutting machines
• Semiconductor manufacturing equipment
• Sorting equipment
• Industrial Robots
• CAT Scanner

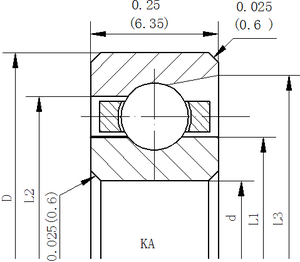

FKA series angular contact thin bearings Dimensions Parameters


KA Series angle contact bearings.png


FKA Series

Bearing

Number

Dimensions

Rated load

Weight
(kg)

Equivalent

d

D

H

Cor

Cr

NTN

KAYDON

INA

FKA020AR0

2.000

2.500

0.25

3510

1470

0.045

KYA020

KA020ARO

CSEA020

FKA020AR0

50.800

63.500

6.35

3510

1470

0.045

KYA020

KA020ARO

CSEA020

FKA025AR0

2.500

3.000

0.25

4270

1690

0.054

KYA025

KA025ARO

CSEA025

FKA025AR0

63.500

76.200

6.35

4270

1690

0.054

KYA025

KA025ARO

CSEA025

FKA030AR0

3.000

3.500

0.25

5070

1910

0.064

KYA030

KA030ARO

CSEA030

FKA030AR0

76.200

88.900

6.35

5070

1910

0.064

KYA030

KA030ARO

CSEA030

FKA035AR0

3.500

4.000

0.25

5830

2090

0.077

KYA035

KA035ARO

CSEA035

FKA035AR0

88.900

101.600

6.35

5830

2090

0.077

KYA035

KA035ARO

CSEA035

FKA040AR0

4.000

4.500

0.25

6630

2270

0.086

KYA040

KA040ARO

CSEA040

FKA040AR0

101.600

114.300

6.35

6630

2270

0.086

KYA040

KA040ARO

CSEA040

FKA042AR0

4.250

4.750

0.25

7020

2360

0.091

KYA042

KA042ARO

CSEA042

FKA042AR0

107.950

120.650

6.35

7020

2360

0.091

KYA042

KA042ARO

CSEA042

FKA045AR0

4.500

5.000

0.25

7380

2450

0.095

KYA045

KA045ARO

CSEA045

FKA045AR0

114.300

127.000

6.35

7380

2450

0.095

KYA045

KA045ARO

CSEA045

FKA047AR0

4.750

5.250

0.25

7780

2530

0.100

KYA047

KA047ARO

CSEA047

FKA047AR0

120.650

133.350

6.35

7780

2530

0.100

KYA047

KA047ARO

CSEA047

FKA050AR0

5.000

5.500

0.25

8180

2620

0.104

KYA050

KA050ARO

CSEA050

FKA050AR0

127.000

139.700

6.35

8180

2620

0.104

KYA050

KA050ARO

CSEA050

FKA055AR0

5.500

6.000

0.25

8980

2760

0.113

KYA055

KA055ARO

CSEA055

FKA055AR0

139.700

152.400

6.35

8980

2760

0.113

KYA055

KA055ARO

CSEA055

FKA060AR0

6.000

6.500

0.25

9740

2930

0.127

KYA060

KA060ARO

CSEA060

FKA060AR0

152.400

165.100

6.35

9740

2930

0.127

KYA060

KA060ARO

CSEA060

FKA065AR0

6.500

7.000

0.25

10540

3070

0.136

KYA065

KA065ARO

CSEA065

FKA065AR0

165.100

177.800

6.35

10540

3070

0.136

KYA065

KA065ARO

CSEA065

FKA070AR0

7.000

7.500

0.25

11290

3250

0.145

KYA070

KA070ARO

CSEA070

FKA070AR0

177.800

190.500

6.35

11290

3250

0.145

KYA070

KA070ARO

CSEA070

FKA075AR0

7.500

8.000

0.25

12090

3380

0.154

KYA075

KA075ARO

CSEA075

FKA075AR0

190.500

203.200

6.35

12090

3380

0.154

KYA075

KA075ARO

CSEA075

FKA080AR0

8.000

8.500

0.25

12850

3510

0.163

KYA080

KA080ARO

CSEA080

FKA080AR0

203.200

215.900

6.35

12850

3510

0.163

KYA080

KA080ARO

CSEA080

FKA090AR0

9.000

9.500

0.25

14400

3780

0.186

KYA090

KA090ARO

CSEA090

FKA090AR0

228.600

241.300

6.35

14400

3780

0.186

KYA090

KA090ARO

CSEA090

FKA100AR0

10.000

10.500

0.25

15960

4050

0.204

KYA100

KA100ARO

CSEA100

FKA100AR0

254.000

266.700

6.35

15960

4050

0.204

KYA100

KA100ARO

CSEA100

FKA110AR0

11.000

11.500

0.25

17510

4310

0.227

KYA110

KA110ARO

CSEA110

FKA110AR0

279.400

292.100

6.35

17510

4310

0.227

KYA110

KA110ARO

CSEA110

FKA120AR0

12.000

12.500

0.25

19070

4580

0.245

KYA120

KA120ARO

CSEA120

FKA120AR0

304.800

317.500

6.35

19070

4580

0.245

KYA120

KA120ARO

CSEA120

Remark:

1. Please refer to the FRB technical drawings for detailed technical parameters.
2. If you have other technical requirements, please let us know when you order.
3. If you have any questions or needs, please feel free to contact us and we will reply you as soon as possible.
