Cross roller slewing bearings (XFSA series) with external gear teeth
Cross roller slewing bearings (XFSA series) with external gear teeth
Product description
Parameter
Related products

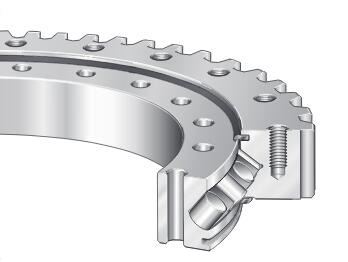

Crossed roller slewing bearings

XFSA14 Series.jpg


Feature:
–These preloaded slewing rings can support higher loads than four point contact bearings. They have proved themselves
particularly where bearings are subjected to high radial forces and moderate axial and tilting moment loads.


–They are suitable for applications with uniform running free from stick-slip, low rotational resistance and high requirements for axial and radial runout accuracy and rigidity, for example in robots, handling systems and machine tools.

FRB Bearings to provide users with XFSA series cross roller bearings with external gear teeth which can replace the INA company XSA series.At the same time, we can redesign the bearing according to customers' needs. We have rich experience and complete product series, which can fully meet users' needs for standard and non-standard bearings. Welcome new and old customers to order.

XFSA series
1)standard series 14, external gear teeth
2)cylindrical rollers to DIN 5402, spacers made from plastic
3)lubrication nipple on the circumference of the ring without gear teeth
4)rolling element pitch circle diameter from 414 mm to 1094 mm



Cross roller slewing bearings (XFSA series) Dimensions Parameters

XSA Series cross roller slewing ring.png

XSA Series cross roller slewing bearing.png

Remark:
1. Please refer to the FRB technical drawings for detailed technical parameters.
2. If you have other technical requirements, please let us know when you order.
3. If you have any questions or needs, please feel free to contact us and we will reply you as soon as possible.
